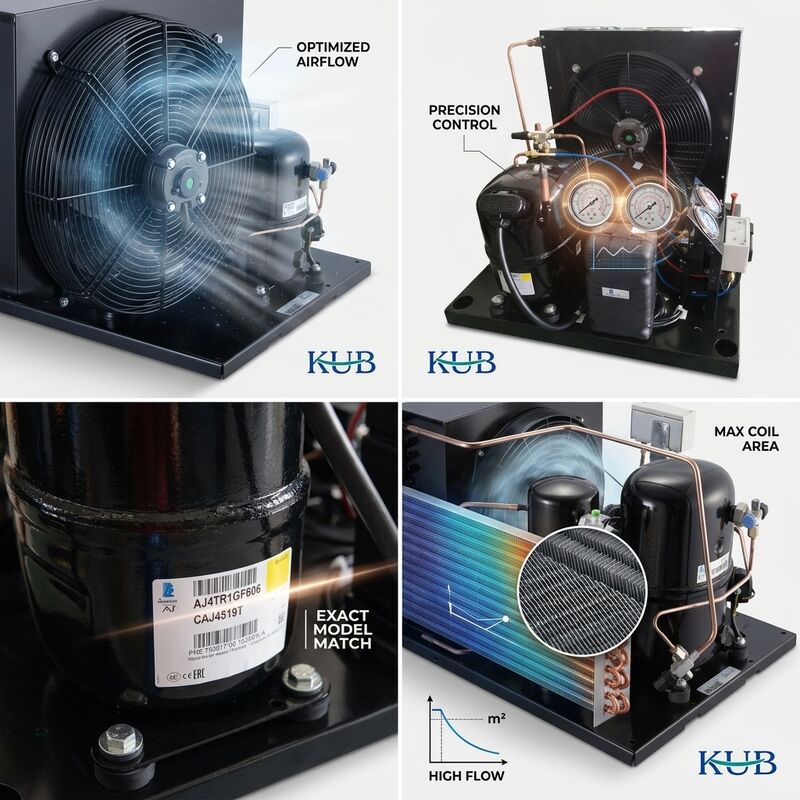

Multi Capacity Small Condensing Unit R404A R134a Hermetic Walk-in Cooler Freezer Display Cabinet 1HP to 5HP Range

Multi Capacity 1HP to 5HP Small Condensing Unit - R404A R134a

This versatile multi-capacity small condensing unit series covers a wide cooling range from 1HP to 5HP, suitable for diverse commercial refrigeration applications. Whether you need a compact 1HP unit for a small display cabinet or a powerful 5HP unit for a large walk-in cold room, this series has you covered.

Key Features

• Wide capacity range: 1HP to 5HP (0.75kW - 3.75kW)
• Cooling capacity: 2.2 kW to 10.5 kW across the range
• Compatible with R404A, R134a, and R449A refrigerants
• Available in 220V 1PH 50Hz and 380V 3PH 50Hz configurations
• Hermetic reciprocating or scroll compressor options
• Copper tube aluminum fin condenser with axial fan
• Evaporating temperature range: -25°C to +10°C
• Receiver tank capacity: 1.5L to 3.5L depending on model

Applications

Walk-in coolers, freezers, display cabinets, beverage coolers, ice machines, and cold storage rooms of all sizes.
