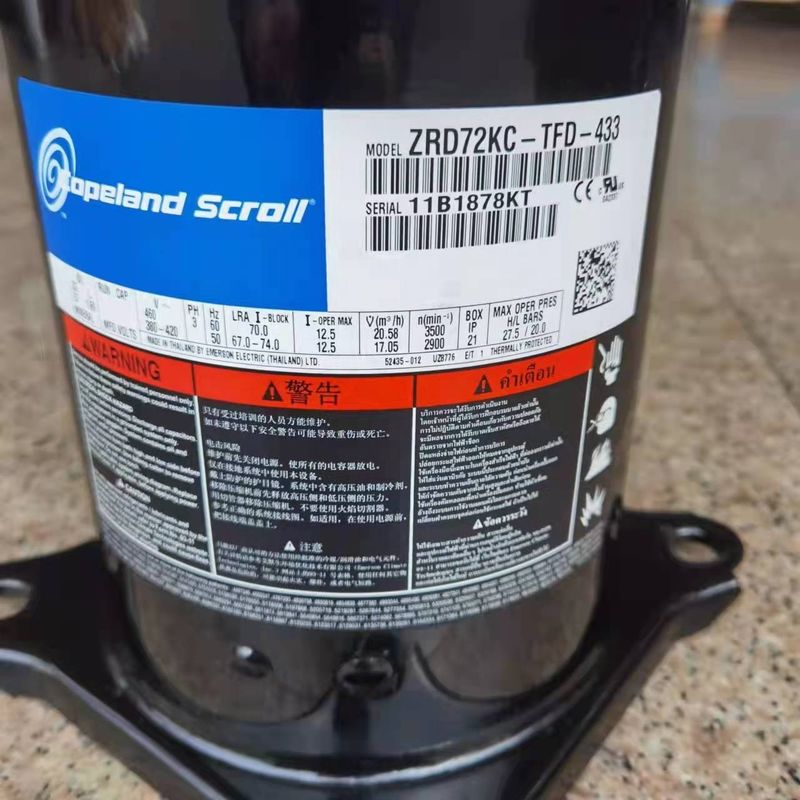

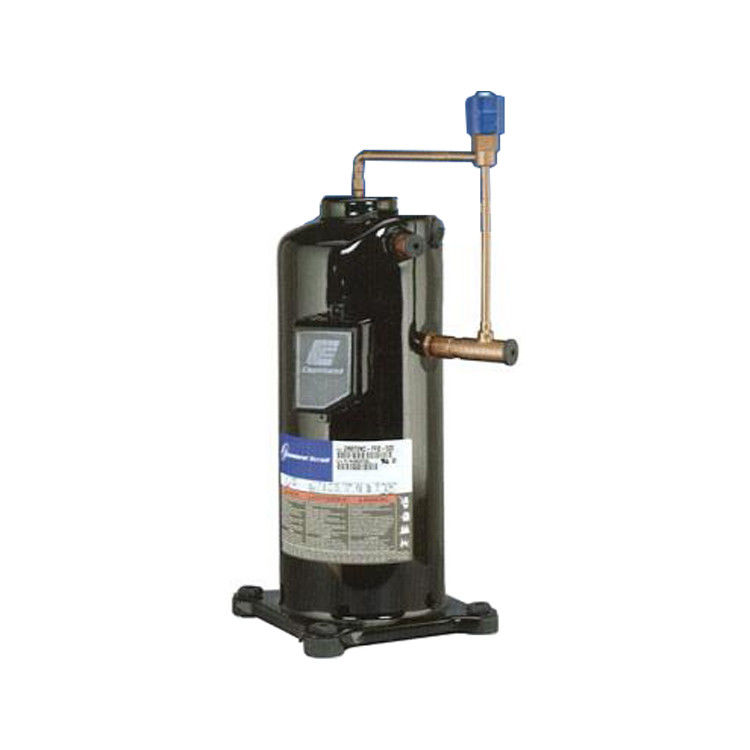

ZRD72KC ZRD72KC-TFD-433 6HP compressor Copeland digital compressor

Lieu d'origine Changhaï, Chine
Nom de marque KUB
Certification CE
Numéro de modèle ZRD72KC
Quantité de commande min 20
Prix Consult
Détails d'emballage Emballage de palette
Délai de livraison 20days
Conditions de paiement L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacité d'approvisionnement 1000 morceaux/morceaux par an

Contactez-moi pour des aperçus gratuits et des bons.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.

x
Détails sur le produit
Alimentation d'énergie 380-420v 3ph 50hz Type de compresseur Compresseur hermétique
Type de structure Horizontal Réfrigérant R22
Capacité de refroidissement 17600 Puissance 5330
Conditions d'essai UNE
Laisser un message
Description de produit

ZRD72KC ZRD72KC-TFD-433 6HP compressor Copeland digital compressor



Model Horsepower Cooling capacity Input power Current COP EER
W Btu/h W A W/W (Btu/Wh)
ZRD72KC TFD 17600  60200  5330  9.6  3.31  11.3
Model Refrigerant Displacement Filling oil N.W Stall current Noise Voltage
(cc/Rev) L kg A dBA
ZRD72KC TFD R22 98.1  1.89  39.9  74  71  380-420v 3ph 50hz




Copeland scroll compressors are perfect for split, rooftop, unit and chiller systems.
Copeland digital scroll compressors provide infinite capacity adjustment for air conditioning applications and are suitable for R22, R407C and R410A refrigerants.
In many refrigeration and heating system applications, the load and operating conditions of the system vary over a wide range, and at this time, adjustable capacity output is necessary. Copeland Digital Scroll is a simple and reliable compressor solution with energy output adjustable down to 10% of nominal cooling capacity, meeting multiple requirements for precise temperature and humidity control, comfort and energy savings.

Copeland digital scroll compressors are perfect for VRF multi-line, rooftop, chiller and process cooling.
